10 Ton Hydraulic Gear Puller, Adjustable 2 or 3 Jaws Bearing Hub Separator, for Pulling Hubs, Gears, Bearings, Hydraulic Puller Separator Tool Set

Details:

10 Ton Hydraulic
Gear Puller
Specifications:
Maximum capacity: 10T; Ares stroke: 2.36 inches (60 mm).
Min / max range(Longitudinal pulling distance):160mm(6.3inch).
Min / max extension(Horizontal draw distance): 2 "- 9.84" (50-250 mm).
Ram Stroke(Thimble stroke):60mm(2.36inch)
Thread diameter:60mm(2.36inch)"
Package Dimension (L x W x H): 17.7 x 8.6 x 3.5 inch / 45 x 22 x 9 cm
Package Weight: 20.3 lbs / 9.2 kg
[High-Quality Materials]The hydraulic puller, claw hook and claw hook frame are made of alloy steel, which is not easy to deform and does not leak oil. It is very strong with a maximum load capacity of 10 tons (22046 lbs) and a long service life.
[Multiple Claws]2 or 3 claws can be freely interchanged to meet different purposes. The pump head can be rotated 360 degrees, flexible The 5-ton hydraulic puller can be operated horizontally or vertically, regardless of site restrictions.
[Multi-Directional Operation]it has 2" (50mm) of axis travel, 6.3" (160mm) of maximum reach (longitudinal pull distance) and 9.84" (250mm) of maximum reach (horizontal pull distance).

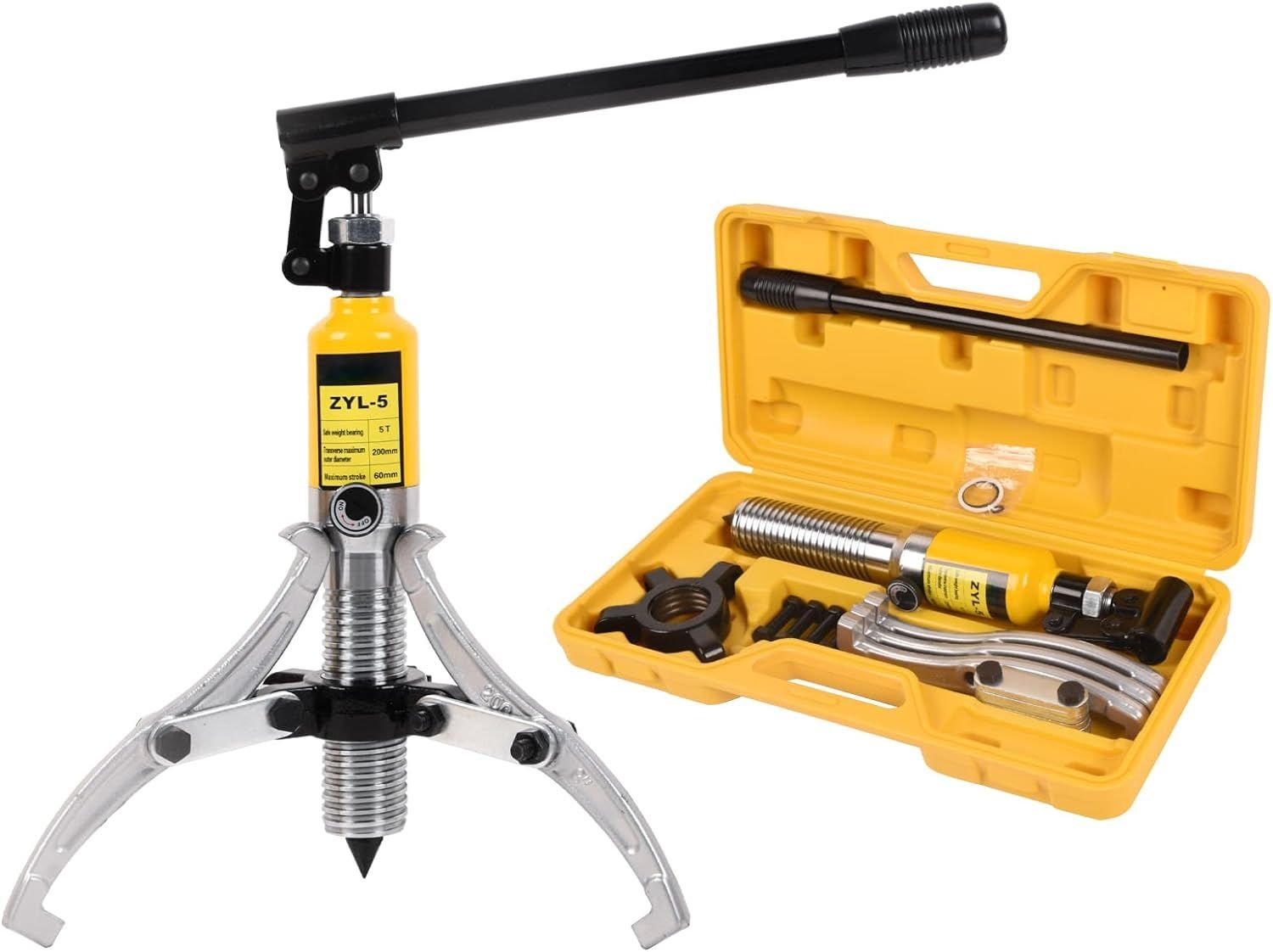

[Portable Set]Comes with: 1 x hydraulic puller, 1 x handle, 1 x 2/3 leg puller yoke, 3 x jaws, 6 x link plates & screw sets, 1 x seal ring, 1 x plastic box, compact structure, flexible work.

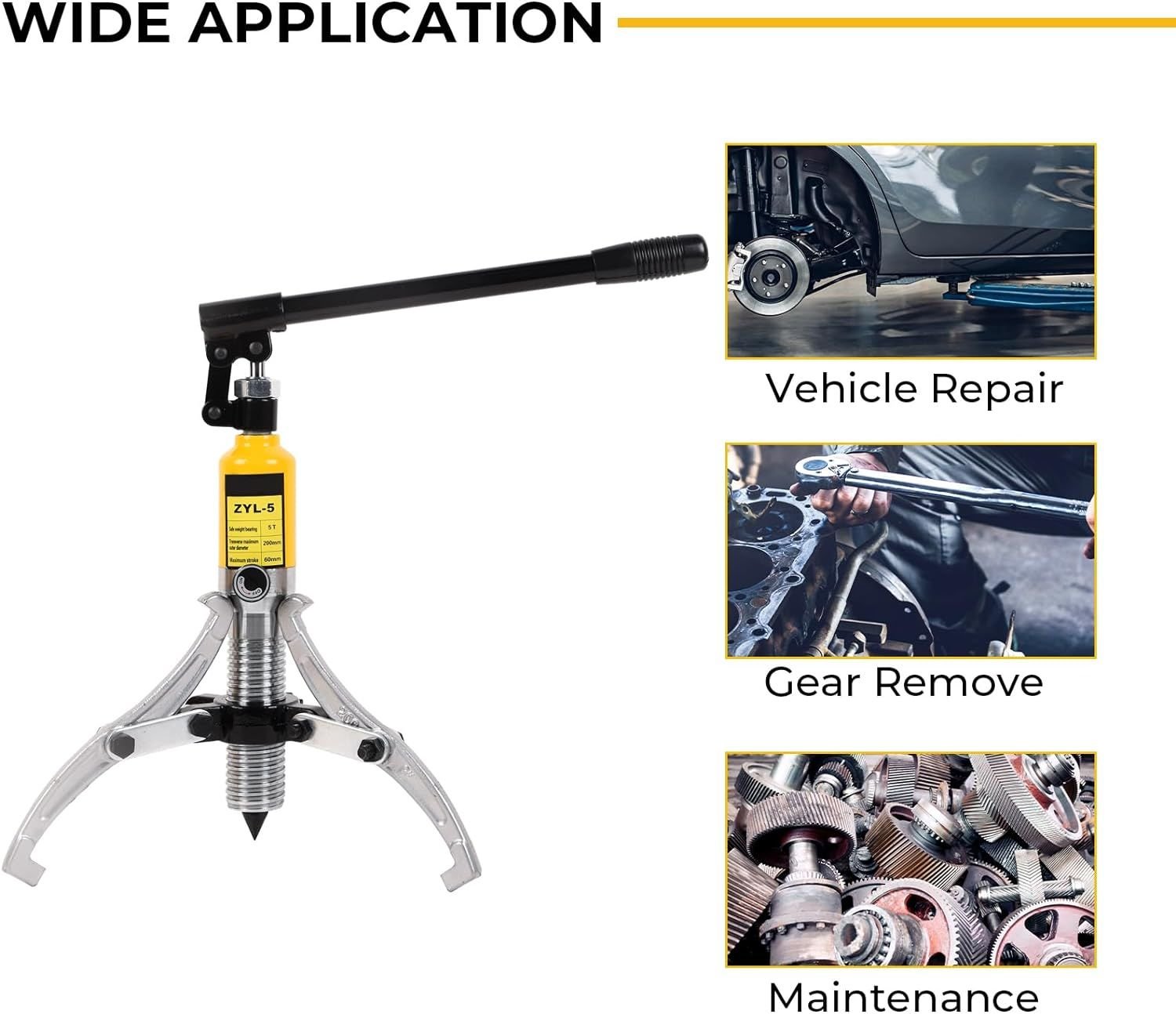

[Wide Application]Bearing separators are widely used in various places. Such as truck hubs, sprockets, rotors, automobile axles, hub bearings; maintenance of railway vehicles, factory machinery and mining equipment, etc.

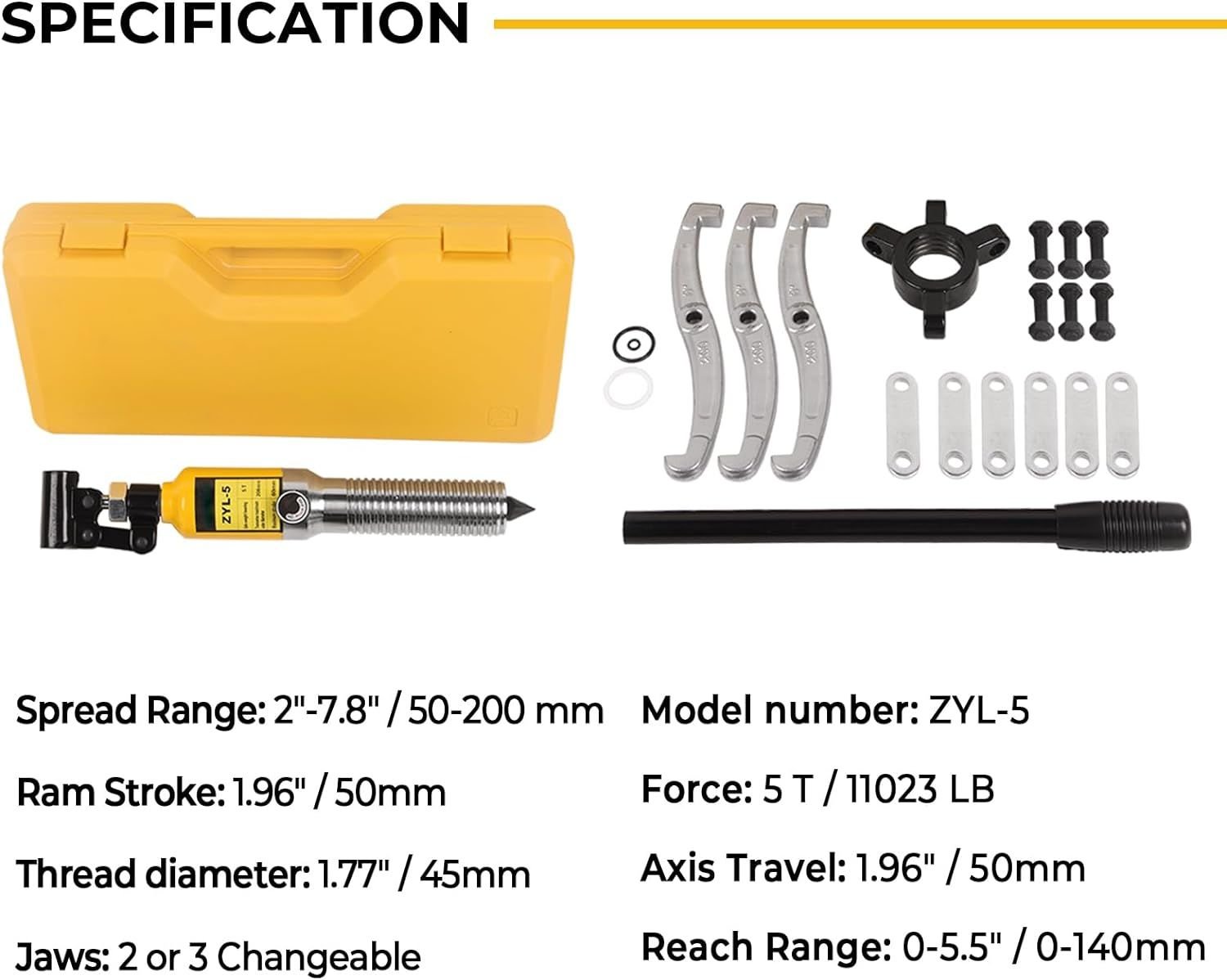

Package List:
1 x Hydraulic Puller
1 x Handle
1 x 2/3 Leg Puller Yoke
3 x Jaws
6 x Link Plates & Screw Sets
1 x Seal Ring
1 x Plastic Box

5 Ton
[PARAMETERS]The hydraulic puller has 5 Ton (11023 lbs) max capacity:ram stroke: 2 inches (50 mm);Min / max range(Vertical Operation): 0-5.5 inches (0-140 mm);Min / max extension(Horizontal Operation): 2 "- 8" (50-200 mm);Axis Travel:2 inches (50 mm);Thread diameter:45mm(1.77inch);Jaws: 2 or 3 Changeable;
[HIGH SAFETY COEFFICIENT]One-piece casting cylinder and cover effectively prevent rupture and oil leakage.Safety relief valve to avoid overload, flexible ejector pin design for accurate centering.Hydraulic puller kit is ideal for pulling hubs, flanges, gears, pulleys, flywheels, bearing chucks from shafts.
[HORIZONTAL AND VERTICAL OPERATION]This gear puller allows both horizontal and vertical pulling operations, making it easy to work with machine parts facing different directions. The included extended handle ensures more flexible and labor-saving operation.
[2 or 3 JAWS CONVERSIONS ]Easily switch between two or three jaw wheel pullers as needed. Two jaws provide stronger pull and quicker extraction of small bearings and gears. (For operational stability, mount both jaws diagonally.) Three-jaw pullers form a triangular structure that provides more uniform tension, ideal for firmly gripping heavy and large parts during disassembly.
[STURDY MATERIALS]The pump body is forged through high temperature hardening to ensure that it remains strong for long-term use without deformation or bending. The finely machined jaws provide a stronger grip. The entire hydraulic pulley puller is made of industrial grade steel with a high quality rust and corrosion resistant coating.Widely used in automotive repair shops, machine shops, repair shops and so on.
Details:
Max. Capacity: 5 Ton/11023 lbs
Min/Max. Reach(Vertical Operation):0-5.5 inches (0-140 mm)
Min/Max. Spread(Horizontal Operation): 2 "- 8" (50-200 mm)
Ram Stroke(Thimble stroke): 2" / 50mm
Jaws: 2 or 3 Changeable
Axis Travel: 2" / 50mm
Package Dimensions ‎17.5 x 8.8 x 3.5 inch / 44.5 x 22.5 x 9 cm
Item Weight:15.7 lbs / 7.1 kg
Package Included:
1 x Hydraulic Puller
1 x Handle & seal ring
1 x 2/3 Leg Puller Yoke & Plastic Box
3 x Jaws
6 x Link Plates & Screws Sets
